About Relationships Manager

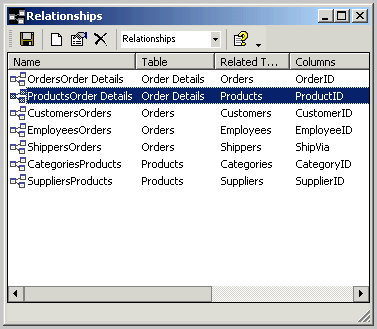

Use the Relationships Manager dialog box to create, edit, or delete relationships between the tables. In a relational database, relationships enable you to prevent redundant data.

For example, if you are designing a database that will track information about books, you might have a table called titles that stores information about each book, such as the book's title, date of publication, and publisher. There is also information you might want to store about the publisher, such as the publisher's phone number, address, and zip code. If you were to store all of this information in the titles table, the publisher's phone number would be duplicated for each title that the publisher prints. A better solution is to store the publisher information only once in a separate table, publishers. You would then put a pointer in the titles table that references an entry in the publisher table.

You can easily move from Indexes to Relationships dialog box and vice versa by choosing the appropriate option from  the drop-down menu in the toolbar:


Save changes

Save all changes to the table. If you do not press this button, the program will not change the structure of the table.

New relationship

Open the Create New Relationship dialog box to define a new relationship between tables.

Relationship properties

Edit the selected relationship in the Edit Existing Relationship dialog box.

Delete index

Drop the selected relationship on the selected database and tables.

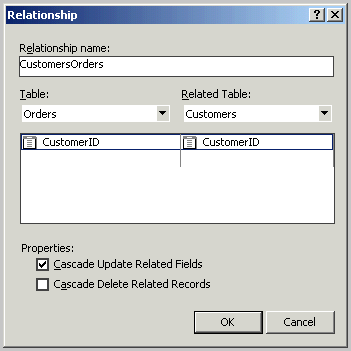

Relationship name

Sets the name for the relationship.


Shows the name of the primary key table in the relationship, followed by the columns that make up the primary key.

Related table

Shows the name of the foreign key table in the relationship, followed by the columns that make up the foreign key.

Cascade Update Related Fields

Instructs the database engine to automatically update foreign-key values of this relationship whenever the primary-key value is updated.

Cascade Delete Related Fields

Instructs the database engine to automatically delete rows of the foreign-key table whenever the referred-to row of the primary-key table is deleted.

Related Topics:

How to create relationships between tables

About relationships in a database

Create or change relationships


About tables

Indexes and primary keys
